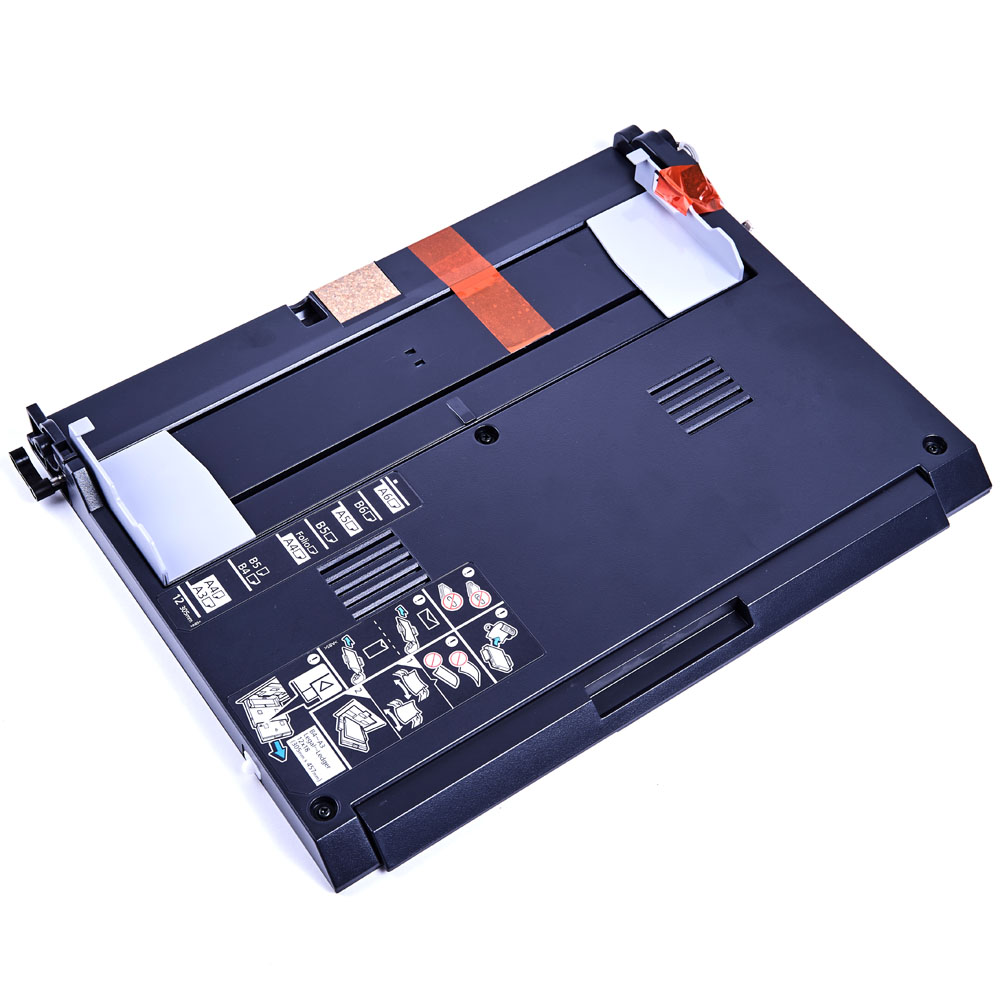

KYOCERA 302K994051 Многофункциональный лоток

Name used in Parts list - PARTS MPT TRAY UNIT SP
Альтернативный артикул: 302K994050

В состав многофункционального лотка входит:
2FB07330 STOPPER BYPASS TABLE
302K994620 PARTS PWB MPF SIZE ASSY SP
302K908030 TRAY MPF A
302K908040 TRAY MPF B
302K908050 TRAY MPF C
302K908060 TRAY MPF D
302K908120 RACK CURSOR MPF
302K908211 ACTUATOR SIZE DETECTION
3HL06110 TERMINAL PAPER SIZE
7NXGP1A173LCH01 SENSOR OPT.
7SP01000006+H01 SW.PUSH
302LC34061 LABEL MPF CAUTION A
302LC34080 LABEL MPF PAPER LIMIT
302K908200 SPRING-COMPRESSION LIFT
302K908190 SHAFT LIFT MPF
302K908130 ARM LIFT A
302FB09830 CUT WASHER 4
302K908140 ARM LIFT B
302K908650 HOLDER MPF TABLE
303LL07471 SPRING PF
302K908220 SPRING-TORSION SIZE DETECTION
302K908580 HOLDER SIZE DETECTION
302K908160 GUIDE WIRE TRAY
302K946600 WIRE MPF SIZE DETECTION
302H708150 SPONGE WIRE MPT
302K908080 BASE LIFT
302F909210 PAD BOTTOM
302K946380 WIRE MPF TRAY
302H712650 SPRING DRUM JOINT
302K908110 CURSOR MPF R
302K908100 CURSOR MPF F
302K908090 COVER CURSOR
65815060 IDLE GEAR 40,TONER SUPPLY
302K917100 SEAL FRAME ISU

KYOCERA TASKalfa 3501i
KYOCERA TASKalfa 4501i
KYOCERA TASKalfa 5501i
