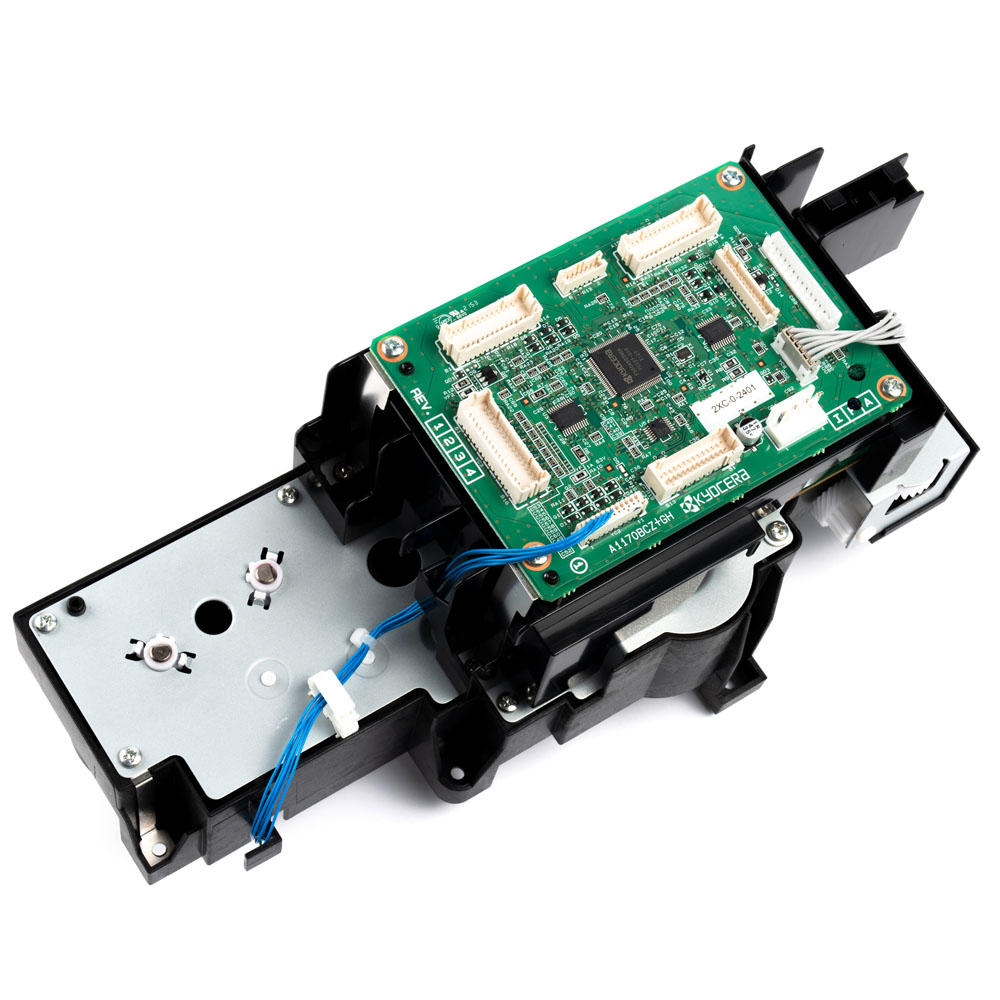

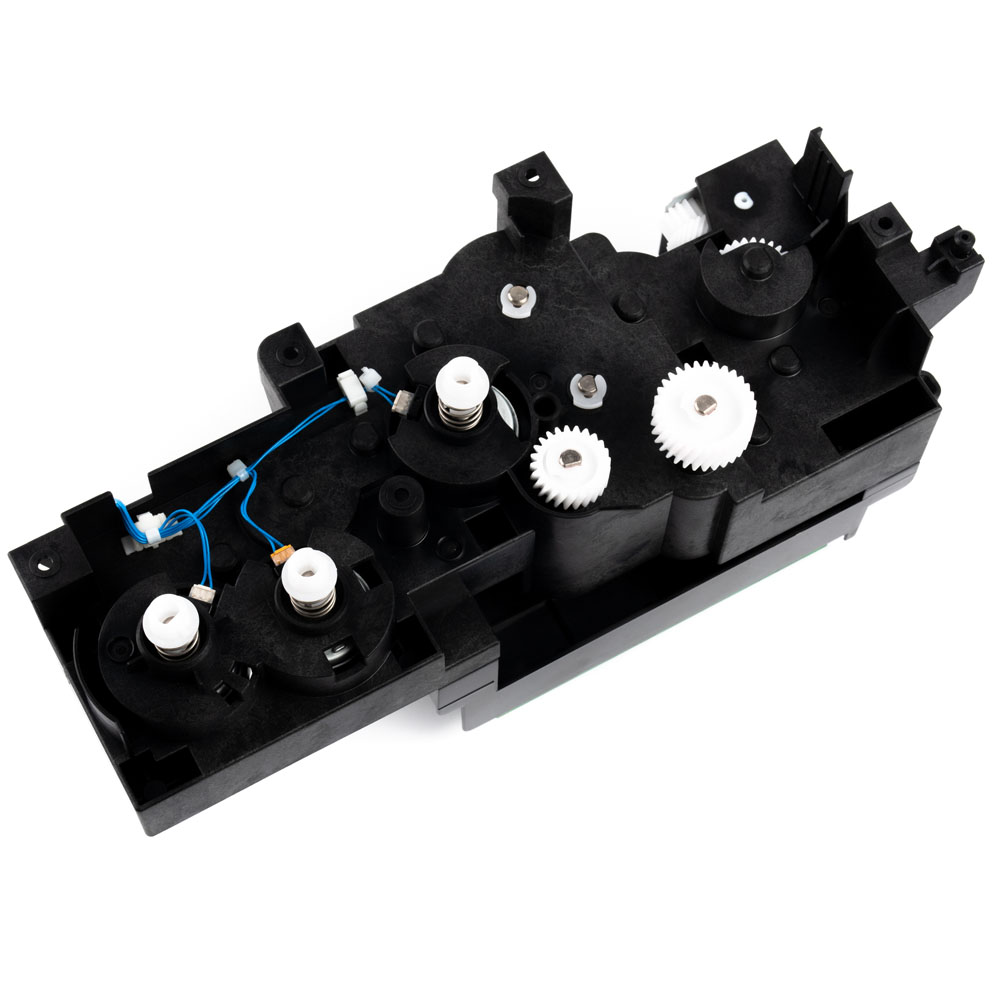

KYOCERA 302XD94150 Узел двигателя секции Drive

Name used in Parts list - PARTS FEED DRIVE L ASSY SP
Узел двигателя секции Drive

В состав узела двигателя секции Drive входит:
•7YZM610007++H01 ACCESS.SADDLE
•302ND31700 PIN FEED
•302ND31730 PIN REGIST
•302ND31711 SHAFT JOINT MID
•5MVX111DN003 RING STOPPER / A-49 FEED A4
•302ND31721 SHAFT JOINT DU
•302ND31630 GEAR Z23R
•302HG12310 CUT WASHER 4
•302RH94090 PARTS CLUTCH 35 Z35R SP
•302K931510 GEAR Z35R
•302HN31200 GEAR Z35L
•302HN31660 JOINT SHAFT CASSETTE
•302K931550 GEAR Z27L
•302K031310 GEAR MIDDLE CLN Z30R
•302ND31780 GEAR Z56R-Z31R
•302ND31580 GEAR Z71R-Z29L-Z42S
•302ND31660 GEAR Z16R-Z33S
•302JZ31170 GEAR Z27L MAIN
•302K331140 GEAR Z30R IDLE
•302H731500 GEAR Z36L MAIN
•302ND31760 PLATE EARTH FEED
•302ND31571 PLATE FEED DRIVE
•302H702590 BUSH SCREW
•7YZM610001++H01 ACCESS SADDLE
•302ND31670 GEAR Z16S-Z24R
•302ND46160 CONN.CORD ASSY FEED MOTOR
•302ND94771 PARTS MOTOR-BL W30 ASSY SP
•302ND28270 BUSH SLIDE
•302ND31600 GEAR Z24R
•302ND31640 GEAR Z31R
•302HN31410 SPRING FEED
•302XC94020 PARTS PWB FEED DRIVE ASSY SP

Узел двигателя секции Drive совместим:
KYOCERA TASKalfa 2554ci
KYOCERA TASKalfa 3554ci
