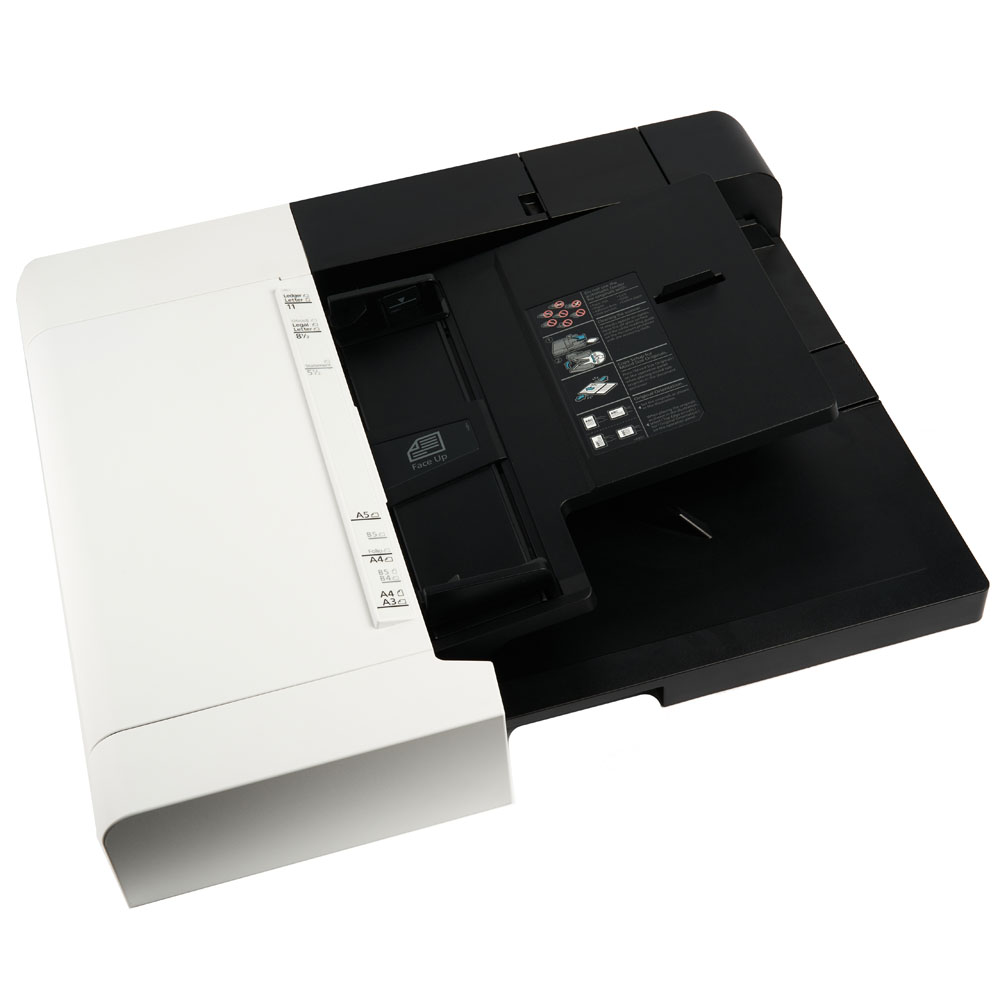

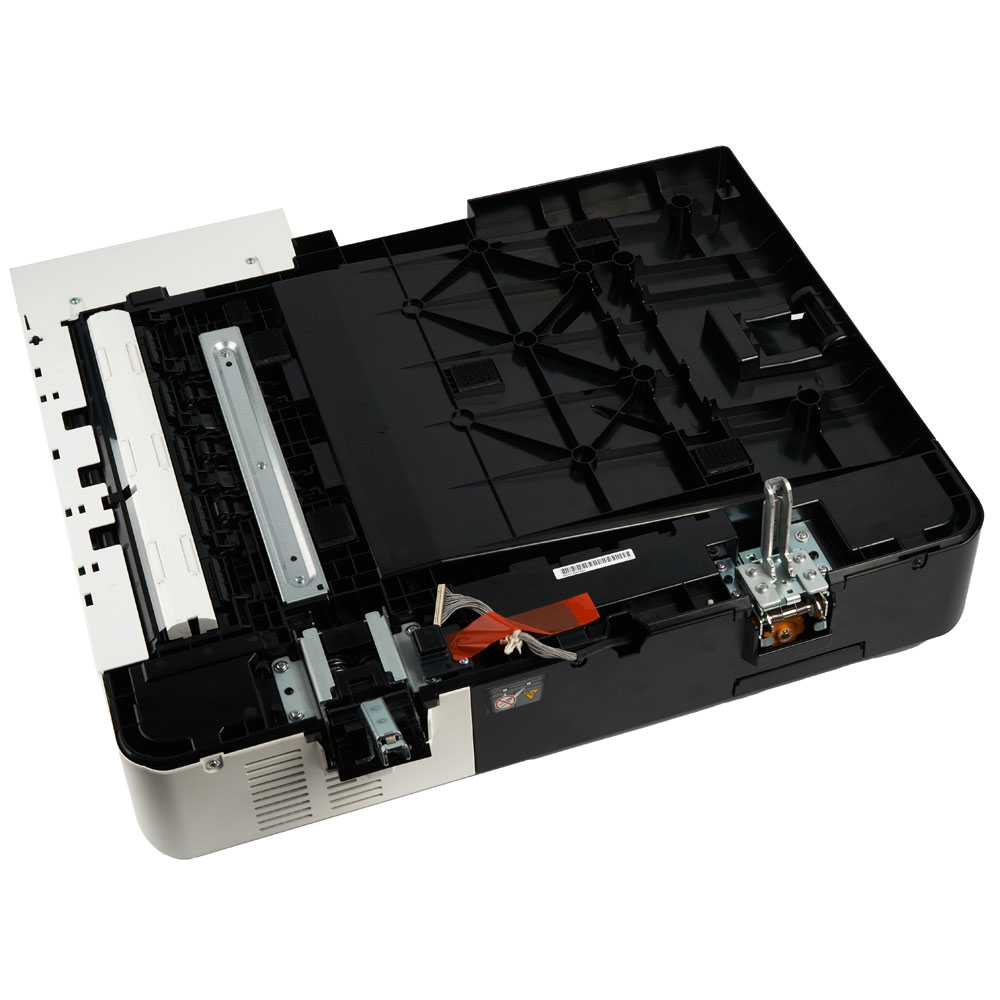

KYOCERA DP-6115 автоподатчик оригиналов

Name used in Parts list: PARTS DP UNIT SP
Name used in Service Manual: Document processor
Альтернативный артикул: 302P193100/302P193101/302P193102
Автоподатчик оригиналов

Вместимость не более 50 листов (80 г/м²)
Формат бумаги: от A5-R/Statement-R (140 × 182 мм) до A3/Ledger (297 × 432 мм)
Плотность бумаги при сканирование односторонних оргиналов: 45 - 160 г/м²
Плотность бумаги при сканирование двусторонних оргиналов: 50 - 120 г/м²
Реверсивный автоподатчик двусторонних оргиналов сканирует переднюю сторону листа, затем переворачивает его и сканирует обратную сторону листа.

В состав автоподатчика оригиналоввходит:
•302P118130 COVER FRONT
•302P118250 COVER INNER
•302P118140 COVER REAR A
•302P118240 COVER REAR B
•303RJ04140 LID INNER COVER
•302P118340 COVER LID
•302P118220 STOPPER EJECT
•303PH02030 SPONGE ORIGINAL MAT FILM
•303MX02032 CUSHION ORIGINAL MAT B
•303M802320 SPONGE ORIGINAL MAT A
•303J902371 CUSHION ORIGINAL MAT
•303MX02022 CUSHION ORIGINAL MAT A
•303JC04201 PLATE ORIGINAL
•303R834011 LABEL CAUTION HINGE
•7BB200308H +BIND T.T P SCREW 3X8
•303P724120 SHEET LEFT GUIDE R
•303P724130 SHEET LEFT GUIDE F
•303P728050 HOLDER PULLEY EJECT
•303M828040 PULLEY EJECT
•303M828050 SPONGE EJECT
•302H728100 SPRING EXIT PULLEY
•303M824121 HOLDER RIGHT PULLEY
•303M824210 PULLEY CONVEYING BK
•303M824200 SHAFT PULLEY
•3AK20130 GEAR,WORM MAIN TRAY
•302P118490 GUIDE RIGHT READING B
•303M824100 HOLDER LEFT PULLEY
•302H008140 SPRING BYPASSFFED
•302P118160 COVER LEFT
•3HL02240 PUSH SW DP
•302P194181 PARTS PWB DP MAIN ASSY SP
•303RJ04150 COVER HINGE
•7BB700410H +BIND T.T S SCREW 4X10 SR
•7BB202410H +TP-FLAT T.T P SCREW 4X10
•7BB607410H +TP-CUP M SCREW 4X10 R
•302P194020 PARTS TABLE ASSY SP
•303R394050 PARTS PWB PAPER SIZE SENSOR ASSY SP
•303P706060 COVER TABLE WIRE
•302P118200 CURSOR FRONT
•302P118210 CURSOR REAR
•303M894260 PARTS SENSOR OPT SP
•303R706060 GEAR DETECTION
•303R706050 COVER CURSOR
•303R734030 LABEL ORIGINAL MAX
•303R834050 LABEL FACE UP EN
•302P118150 COVER PF
•302P118230 GUIDE CONVEYING UPPER
•303P724090 ACTUATOR FEED
•303P724160 ACTUATOR ORIGINAL SET
•303P731120 GEAR Z21 CONT
•5MVX111DN003 RING STOPPER /A-49 FEED A4
•302P194100 FEED ROLLER (DP)
•303P707060 STOPPER PAPER
•303P707120 STOPPER PAPER B
•5MVX111DN003 RING STOPPER /A-49 FEED A4
•36211500 GEAR,LEADING FEED JOINT
•5MVX111DN003 RING STOPPER /A-49 FEED
•302P118550 HOOK REAR B
•303P724030 GUIDE CONVEYING
•303P724080 ACTUATOR REGISTRATION
•303P724140 ACTUATOR TIMING
•303P729010 GUIDE DUPLEX
•303P729020 GUIDE SHIFT
•302P194110 RETARD GUIDE (DP)
•302P194120 RETARD ROLLER (DP)
•3HK07240 FRICTION PLATE LF
•303P707160 SPRING SEPARATION
•302P118420 GUIDE PAPER FEED
•303LL24190 PULLEY GUIDE READING
•303M824130 SHAFT GUIDE READING
•302P118260 GUIDE READING
•302P194270 PARTS ROLLER REGIST SP
•303P794050 PARTS ROLLER EXIT SP
•303P794030 PARTS ROLLER CONVEYING A SP
•302P194280 PARTS ROLLER CONVEYING B SP
•303P794060 PARTS ROLLER LOOP SP
•303M894260 PARTS SENSOR OPT SP
•303M824210 PULLEY CONVEYING BK
•303M824200 SHAFT PULLEY
•303HL07161 FRONT HOOK PF COVER
•2FB27160 INTER LOCK SWITCH
•5MVX111DN003 RING STOPPER /A-49 FEED A4
•302KV94520 PARTS CLUTCH 50 Z35R SP
•302KY94140 PARTS MOTOR ROTARY SP
•303H622331 GEAR 20/65 IDLE
•303R494040 PARTS MOTOR PAPER FEED SP

Автоподатчик оригинало совместим с моделями:
KYOCERA ECOSYS M4125idn
KYOCERA ECOSYS M4132idn
KYOCERA ECOSYS M8124cidn
KYOCERA ECOSYS M8130cidn
